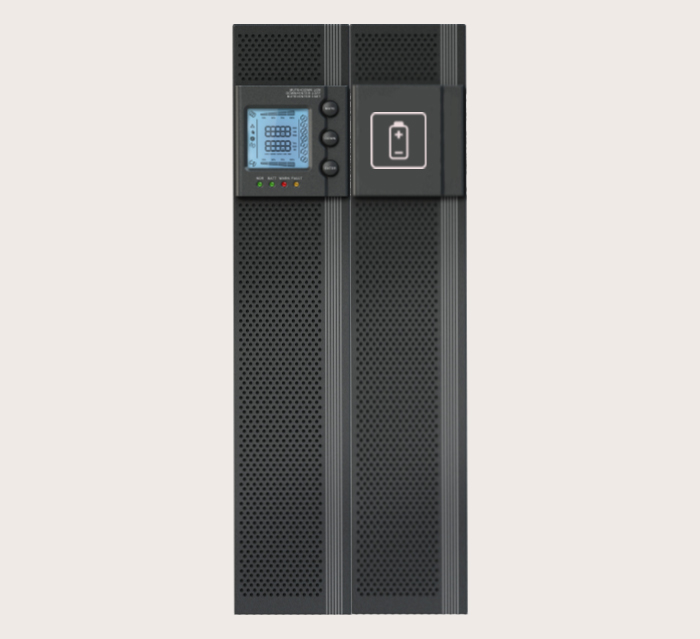

  4. Elegance Power RT

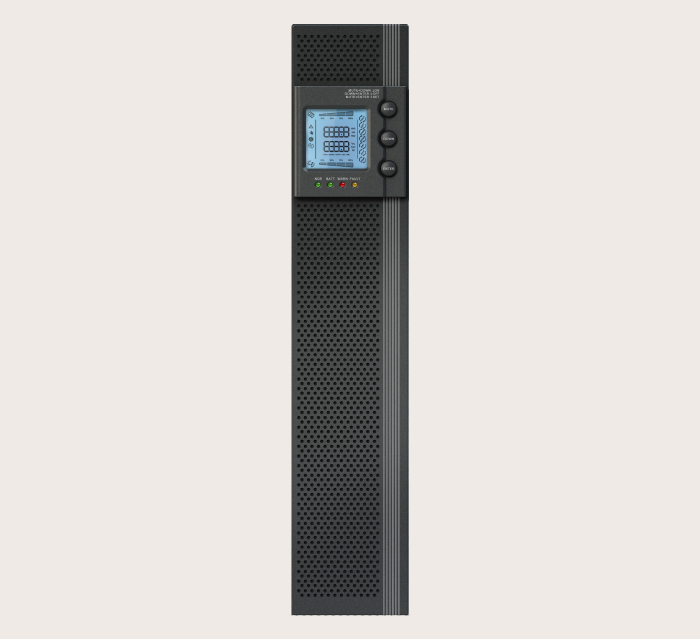

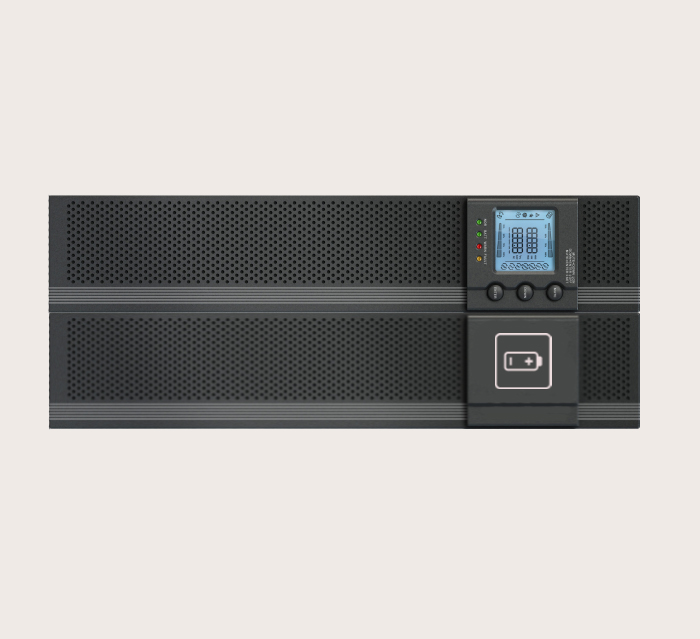

Rack-Tower convertible

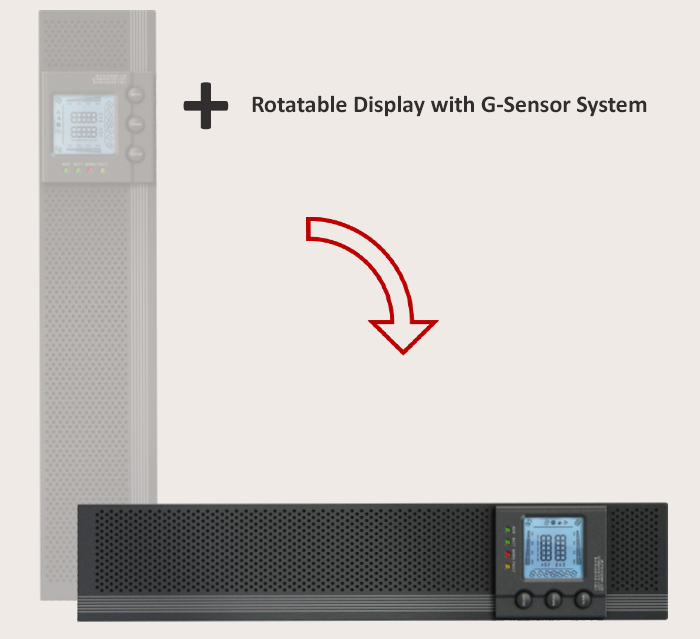

Two directions LCD display,gravity sensor

Online-Double conversion (PFC)

Full digital control (DSP)

Output power factor: 0.9

Economic Operation Mode (ECO)

Wide input voltage range

Self-testing when UPS startup

Cold Start (DC)

Comprehensive protection for the total unit

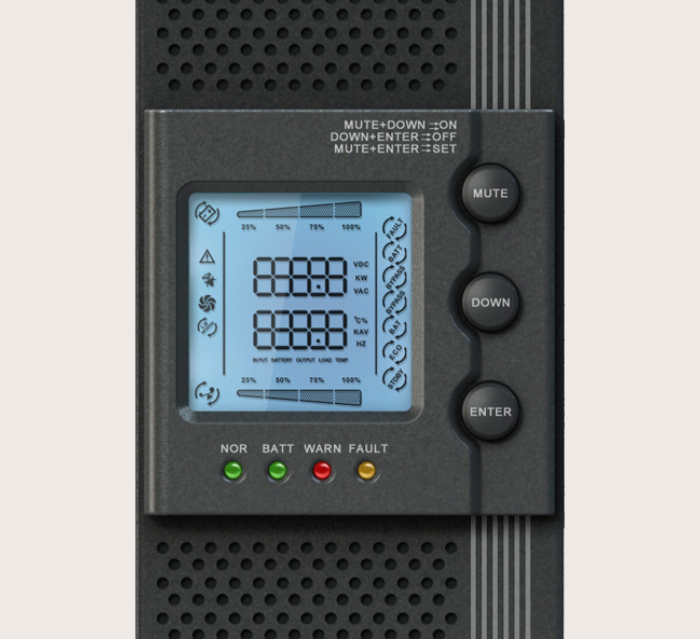

Multifunctional LCD screen, setting output voltage, bypass etc…

Input neutral and live wires reverse detection

Optimized battery configuration: 1K-24V,2K-48V,3K-48/72V

Diverse options of accessories, intelligent management

Intelligent slot optional: USB /SNMP /Dry contact Board

Model
Capacity1 // 2 // 3
Input
Voltage Range110VAC-288VAC
Frequency Range40-70Hz
Power Factor≥0.97
Output
Frequency Range50Hz
THD (Linear Load)-
THD (Non-Linear Load)-
Overload Capability105%-130%to bypass 1 min // 150%: to bypass after 30 sec
Crest Factor3:1
Efficiency87% // 91% // 90%
Battery
DC Voltage36VDC // 72VDC // 96VDC
Configuration-
Backup Time (Half Load)-
Backup Time (Full Load)-
Charge Current (Standard Unit)-
Charge Current (Long Time Unit)-
Recharge Time-
Communication Interface
Parallel Port-
LCD IndicationLED+LCD
LED IndicationLED+LCD
Noise Level-
Environment
Temperature0-40℃
Humidity0-95%(non-condensing)
Altitude-
Storage Temperature-
Other
Standard Unit Net / Gross Weight (kg)7 // 8 // 9.5
Long Time Unit Net / Gross Weight (kg)9 // 10 // 11.5
Dimension (W×D×H) (mm)440*430*86 // 440*480*86 // 440*480*86
Packing (W×D×H) (mm)460*450*106 // 460*500*106 // 460*500*106
